DESCRIPTION

The PS8551L4 is an optical coupled isolation amplifier that uses an IC provided with a high-accuracy A/D

conversion function (sigma-delta modulation method) and a GaAIAs light-emitting diode with high-speed response and

high luminance efficiency on the input side. On the output side IC provided with a high-accuracy D/A conversion

function.

The PS8551L4 is designed specifically for high common mode transient immunity (CMR) and high linearity (non-

linearity). The PS8551L4 is suitable for current sensing in motor drives.

FEATURES

• Non-linearity (NL200 = 0.35% MAX.)

• High common mode transient immunity (CMR = 10 kV/ μ s MIN.)

• High isolation voltage (BV = 5 000 Vr.m.s.)

• Gain tolerance ( Δ G = ±3%)

Gain: 8 V/V

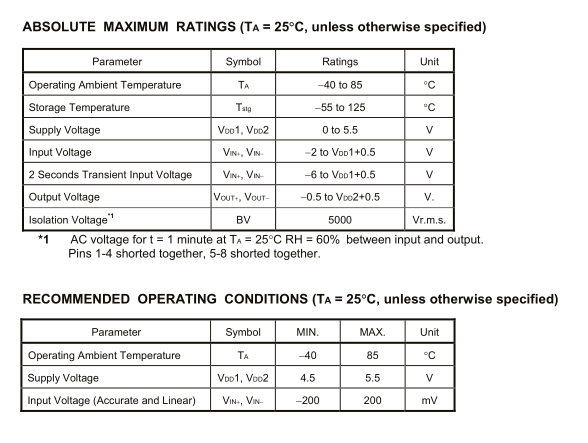

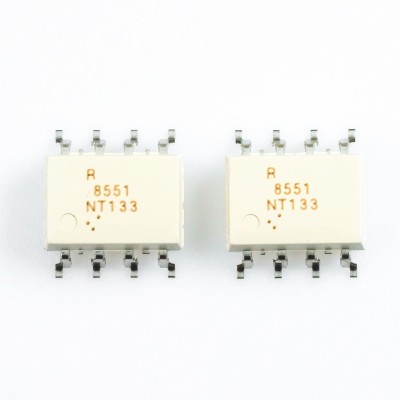

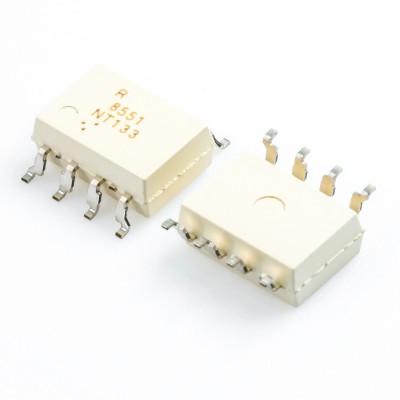

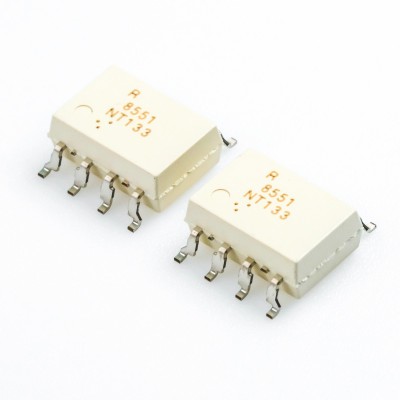

• Package: 8-pin DIP lead bending type (Gull-wing) for long creepage distance

for surface mount (L4)

• Pb-Free product

• Safety standards

• UL approved: File No. E72422

• CSA approved: No. CA 101391

• BSI approved: No. 8937, 8938

• SEMKO approved: No. 615433

• NEMKO approved: No. P06207243

• DEMKO approved: No. 314091

• FIMKO approved: No. FI 22827

• DIN EN60747-5-2 (VDE0884 Part2) approved (Option)

APPLICATIONS

• AC Servo, inverter

• Measurement equipment
