Features

⚫  High performance DSP

➢ Handles PLC PHY layer and other real time operations

➢ 276MHz maximum clock frequency

➢ 128KB of instruction RAM and 128KB of data RAM

➢ Dedicated instructions for Vitervi, read Solomon and others

⚫  MCU(ARM® Cortex™-M3)

➢ Handls PLC MAC layer and upper layer operation

➢ 138 MHz maximum clock frequency

➢ 512KB of RAM

➢ AES128 encryption and decryption hardware engine

➢ CRC hardware engine

⚫  16KB of shared memory

⚫  Analog Front End circuit

➢ DAC

  12MHz, 12bit

➢ Tx filter

  3rd order filter

  150KHz for Cenelec and 600KHz for ARIB and FCC cutoff frequency

➢ Rx variable amplifier

  -18dB to +60dB dynamic range with 2dB step

  Auto Gain Control controlled by DSP

➢ ADC

  Delta – sigma type of ADC

  11bits ENOB

⚫  Programmable and Multiplexed General-Purpose Input/Output (GPIO) Pins

  UART(2ch), CSI(2ch), IIC, Serial-ROM-IF(Single/Dual/Quad), PWM(2ch) and GPIO(16)

⚫  Integrated regulator

  3.3V input and 1.1V output

⚫  Power Supply Voltage: 3.3V

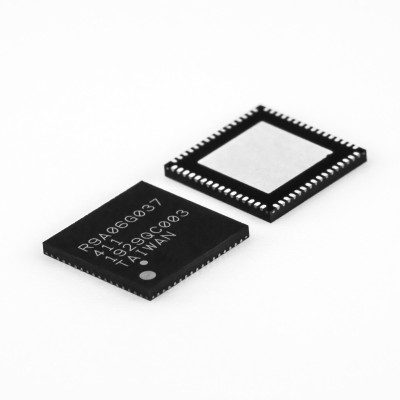

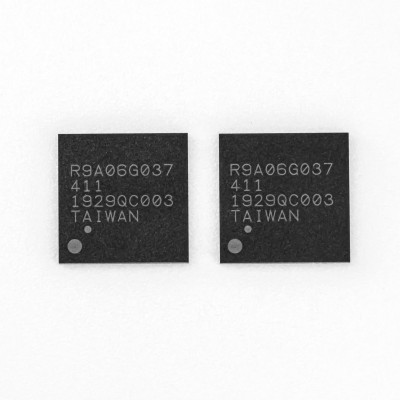

⚫  PKG : 64-pin QFN, 9mm x 9mm, 0.5mm pitch

⚫  Operating Temperature

➢ -40 to +85℃
