HD74LS139
HD74LS139
Dual 2-line-to-4-line Decoders / Demultiplexers
产品详情
The HD74LS139 comprises two individual two-line-to-four-line decoder in a single package. The active-low enable
input can be used as a data line in demultiplexing applications.
Ordering Information
|
Part Name |
Package Type |
Package Code (Previous Code) |
Package Abbreviation |
Taping Abbreviation (Quantity) |
|
HD74LS139P |
DILP-16 pin |
PRDP0016AE-B (DP-16FV) |
P |
— |
|
HD74LS139FPEL |
SOP-16 pin (JEITA) |
PRSP0016DH-B (FP-16DAV) |
FP |
EL (2,000 pcs/reel) |
|
HD74LS139RPEL |
SOP-16 pin (JEDEC) |
PRSP0016DG-A (FP-16DNV) |
RP |
EL (2,500 pcs/reel) |

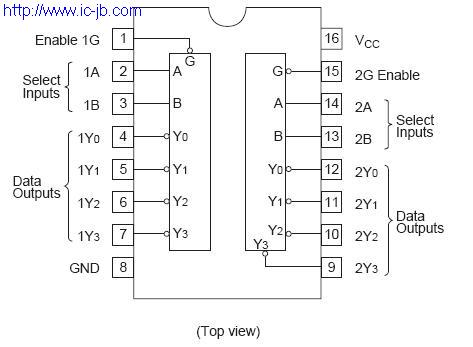

Pin Arrangement
Function Table
|
Inputs |
Outputs | |||||
|
Enable |
Select | |||||
|
G |
B |
A |
Y0 |
Y1 |
Y2 |
Y3 |
|
H |
X |
X |
H |
H |
H |
H |
|
L |
L |
L |
L |
H |
H |
H |
|
L |
L |
H |
H |
L |
H |
H |
|
L |
H |
L |
H |
H |
L |
H |
|
L |
H |
H |
H |
H |
H |
L |
Absolute Maximum Ratings
|
Item |
Symbol |
Ratings |
Unit |
|
Supply voltage |
VCC |
7 |
V |
|
Input voltage |
VIN |
7 |
V |
|
Power dissipation |
PT |
400 |
mW |
|
Storage temperature |
Tstg |
–65 to +150 |
°C |
